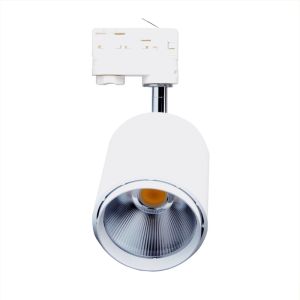

track lighting high quality Epistar chip single arm 20w led track light

    Buy cheap track lighting high quality Epistar chip single arm 20w led track light from wholesalers

    Buy cheap track lighting high quality Epistar chip single arm 20w led track light from wholesalers
    • Buy cheap track lighting high quality Epistar chip single arm 20w led track light from wholesalers
    • Buy cheap track lighting high quality Epistar chip single arm 20w led track light from wholesalers
    • Buy cheap track lighting high quality Epistar chip single arm 20w led track light from wholesalers
    • Buy cheap track lighting high quality Epistar chip single arm 20w led track light from wholesalers
    • Buy cheap track lighting high quality Epistar chip single arm 20w led track light from wholesalers
    • Buy cheap track lighting high quality Epistar chip single arm 20w led track light from wholesalers
    • Buy cheap track lighting high quality Epistar chip single arm 20w led track light from wholesalers
    • Buy cheap track lighting high quality Epistar chip single arm 20w led track light from wholesalers

    track lighting high quality Epistar chip single arm 20w led track light

    Ask Lasest Price
    Brand Name : EWIN
    Model Number : EW-STL-COB-40W
    Certification : CE ROHS
    Price : 20-72.3
    Payment Terms : T/T, Western Union
    Supply Ability : 5000PCS/Month
    Delivery Time : usually 7-10 working days
    • Product Details
    • Company Profile

    track lighting high quality Epistar chip single arm 20w led track light

    2pin 3pin 4 pin dimmable led tracklight cob 20w 40w with 6063 aluminium housing

    track lighting high quality Epistar chip single arm 20w led track light

    • track lighting

    • epistar chip led

    • 20w led track light

    Specifications:

    1.Output: 2200-2300lm.
    2.CRI: 80.
    3.Beam Angle: 30, 50.
    4.Connection: 2-way, 3-way, 4-way.
    5.Certificate: CE/RoHS


    20W COB LED Track lighting

    Products Features:
    (1)LED Power: 20W.
    (2)Lamp Consumption:22W.
    (3)Output: 1800-1900lm.
    (4)Input voltage:100-277v AC, 50-60hz
    (5)Beam Angle:30°/5
    (6)CRI:> 90
    (7)Working Temperature:-40°C-45°C.
    (8)Storage Temperature: -25°C-65°C.
    (9)Color of housing: white, black, silver.
    (10)Track connecotr: 2-way, 3-way, 4-way available.
    (11)Life span: 50,000+hrs.
    (12)Certificate: CE/RoHS
    (13)Warranty: 5 years.


    COB Parameter

    (1)PCB: Ceramic.
    (2)Chip Brand: Epistar 10*23 Or Cree.
    (3)Power: 20W

    (4)Chip Qty: 280 pcs
    (5)CRI> 82.
    (6)Voltage:30-32vDC
    (7)Current: 650-700mA.



    Driver Parameter

    (1)Brand: Lifud (LED Friend).
    (2)Input:100-277v AC.
    (3)Output: 27-42vDC, 350mA.
    (4)Power effect: 0.9-0.97.
    (5)Power Efficiency: 87%
    (6)Certificate:CE/TUV/UL/CQC/SAA

    Dimmable: Triac or Dali is available.
    Meanwell PLD-25-700 is optional.


    track lighting high quality Epistar chip single arm 20w led track lighttrack lighting high quality Epistar chip single arm 20w led track light


    Product Datasheet:


    Part No.ColorCCTOutput(Ra90)
    EW-STL-COB-20W-WWwarm white2900-3200k1800-1900lm
    EW-STL-COB-20W-NWnatural white3900-4200k1900-1950lm
    EW-STL-COB-20W-CWcool white5590-6200k1950-2000lm

    IES Test:(please contact us to get the IES file):

    track lighting high quality Epistar chip single arm 20w led track light

    Packing:

    track lighting high quality Epistar chip single arm 20w led track light

    More Pictures:

    track lighting high quality Epistar chip single arm 20w led track lighttrack lighting high quality Epistar chip single arm 20w led track light

    track lighting high quality Epistar chip single arm 20w led track light

    EWIN Quality Control


    1. 100% testing before aging .


    2. Aging for no less than 24hours, and the switch is off-on aucomatically every 2minutes during aging procedure.


    3. 100% testing by safe tester (with 3700V high voltage) before packing.


    4. Except normal CE, RoHS, FCC certificates for the finished products, we can provide IES files and ERP reports.


    EWIN Services and terms


    Warranty: 3years , free replacement.


    Lead time: 7-10 days.


    Payment: TT, Western Union, Paypal, Money Gram.


    Transportation: DHL, UPS, FedEx, Air, Sea, etc.


    EWIN focus on COB LED Commercial Lighting since from 2010, and we make COB led lamps only, we belive high quality & high efficiency based on profession.

    EWIN wish our lamps would light up your life like the sun.
